Work surface and storage in one
The top serves as a prep surface while drawers hold small tools and the enclosed cabinet stores pots and containers, keeping the work area organized.
PRODUCT STATUS
This product is currently unavailable.
Please return to the product range or contact Yiming about another configuration.
Back to productsWorktables
Stainless Steel Drawer Worktable
Prep surface with drawer and enclosed sliding-door storage.
Reference configuration: three-drawer stainless steel worktable with raised backsplash (AI-generated visual)

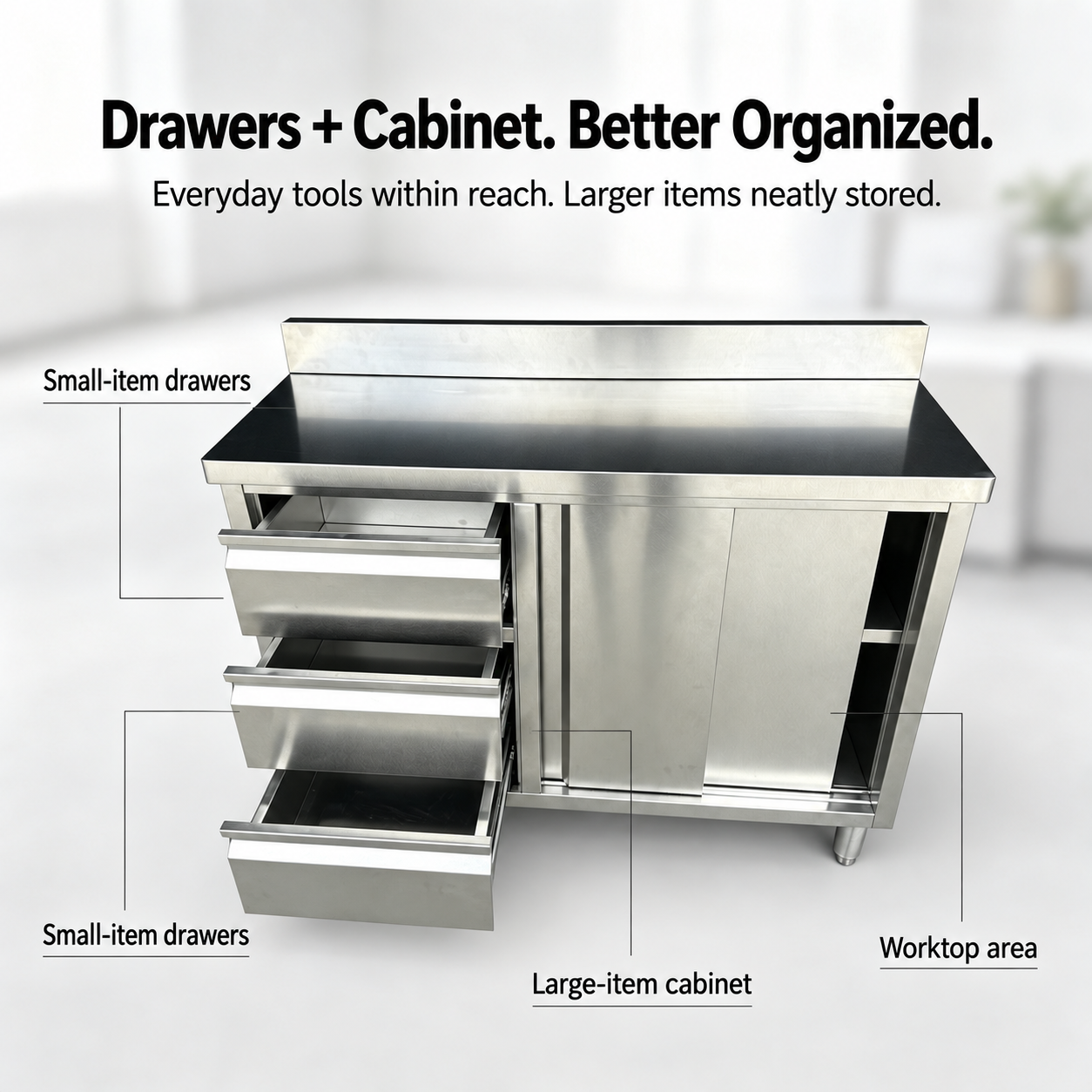

Reference configuration: drawers and enclosed cabinet layout with English annotations (AI-generated visual)

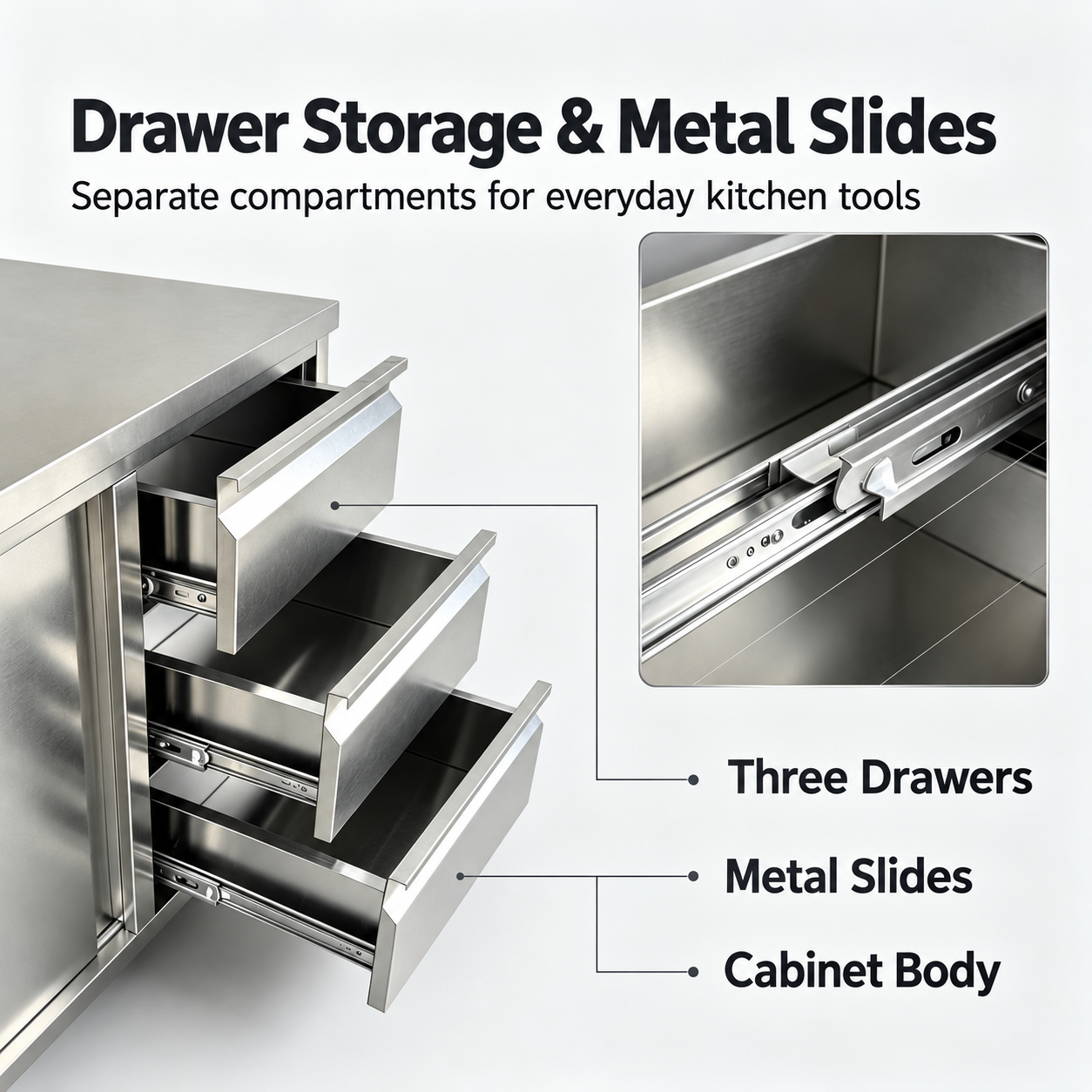

Reference configuration: drawer slides and three-compartment drawer detail (AI-generated visual)

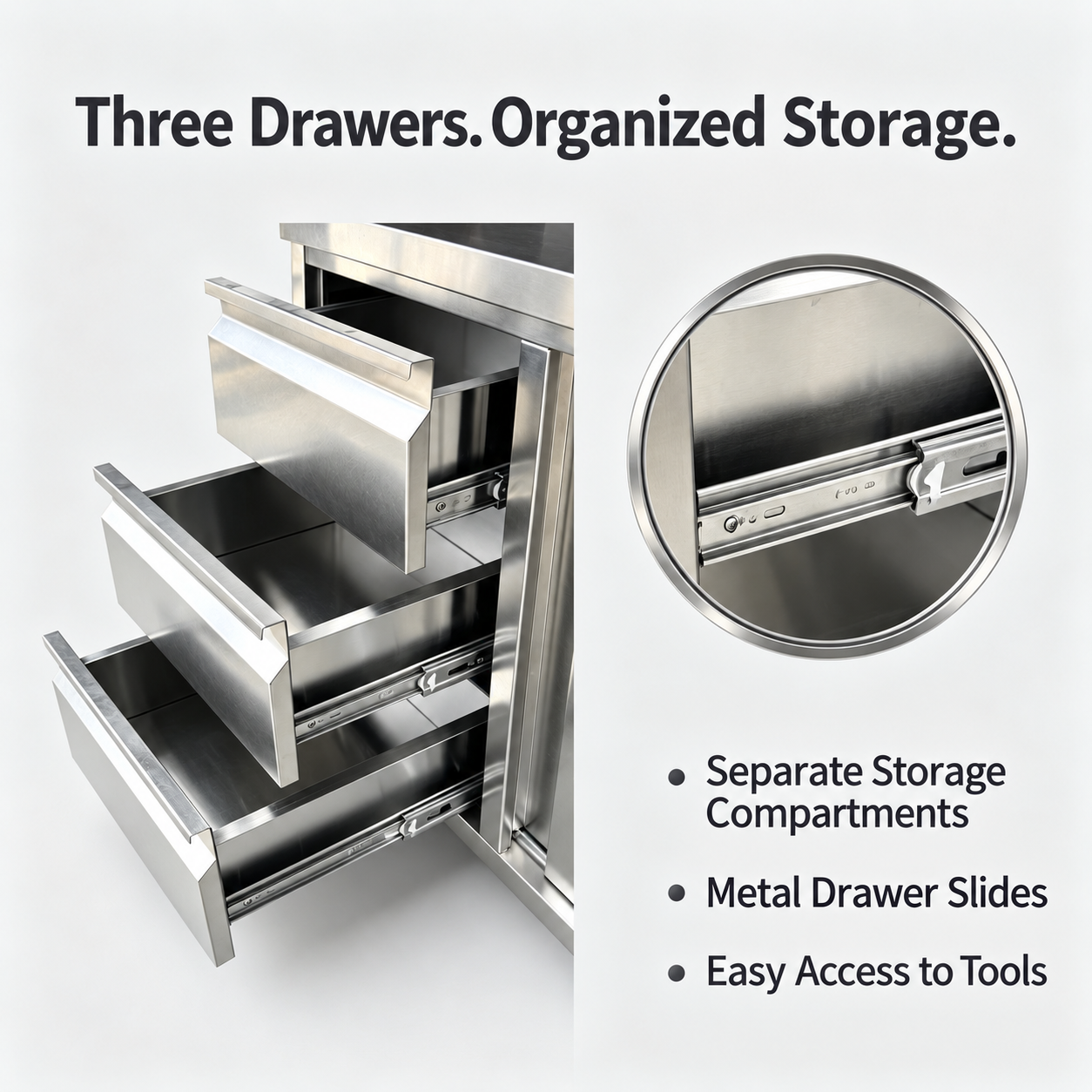

Reference configuration: staggered drawer opening detail of the worktable (AI-generated visual)

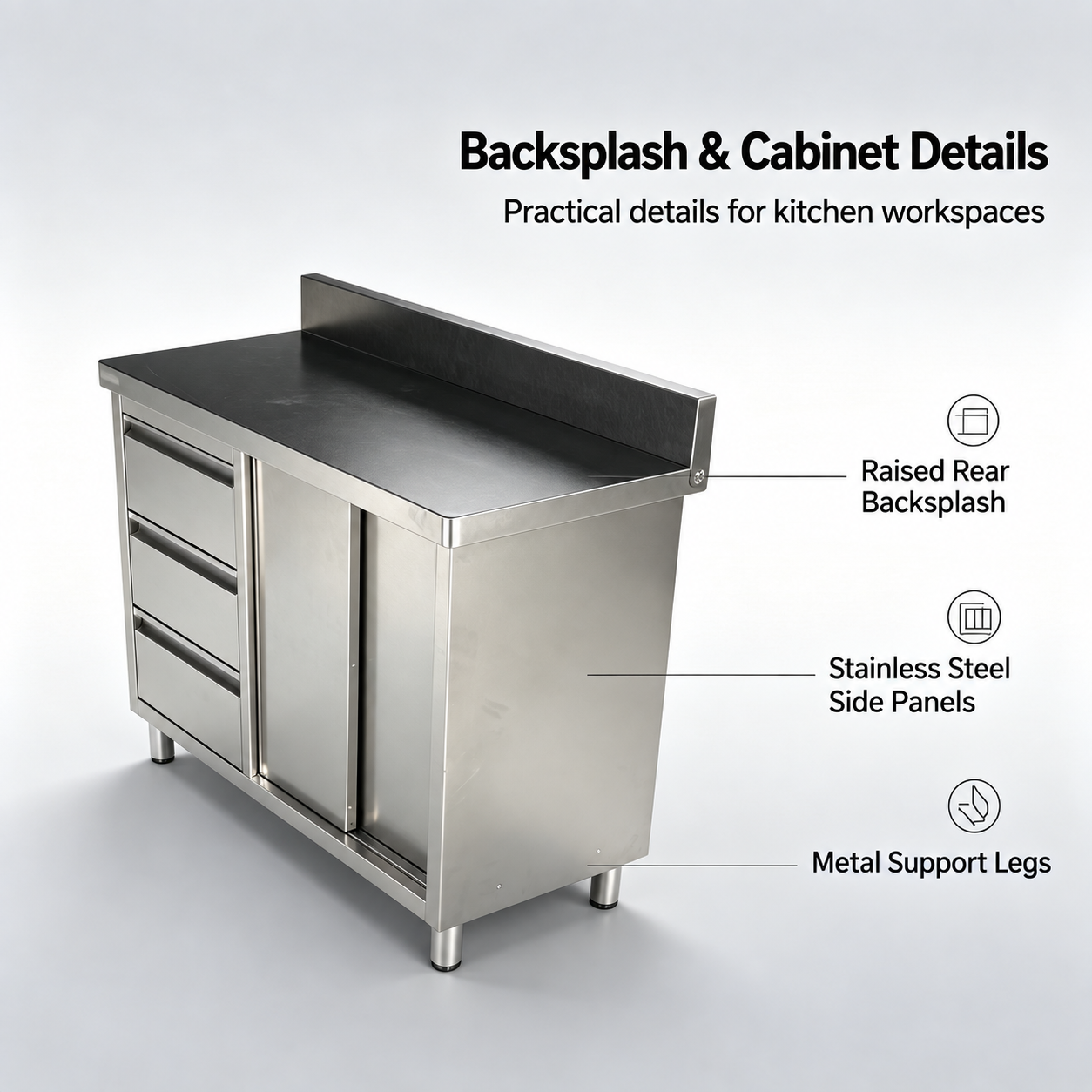

Reference configuration: backsplash, side panels and legs of the worktable (AI-generated visual)
1 / 5
A stainless steel worktable that combines a prep surface with classified storage: three drawers for small tools and a sliding-door cabinet for larger pots and containers. The example configuration shown is 1200 (L) x 700 (D) x 850 (H) mm, with other lengths, depths and heights available.
The unit is built as a modular flat-pack design: parts ship flat in cartons to use container space efficiently and are assembled on site. Dimensions, material grade, finish, branding and packaging are confirmed per project before quotation.
SPECIFICATION CHECK
Confirmed per project
The items below are reviewed and confirmed with you before any quotation.
- Exact dimensions and leg height
- Material grade (201 or 304) and sheet thickness
- Drawer / door layout and internal configuration
- Finish, branding and packaging requirements
02DESIGN & STRUCTURE
What this configuration includes
Raised upstand backsplash
A raised rear upstand runs along the back edge, a design detail intended to reduce splash-back onto the wall behind the table.
Rounded safe corners
Corners are rounded and finished to reduce snag and impact risk in busy kitchen traffic.
Three drawers plus sliding doors
Three independent drawers on metal slides sit beside an enclosed sliding-door cabinet, giving separate zones for small and large items.
Adjustable metal legs
Adjustable metal feet help level the table on uneven floors.
Flat-pack assembly
Modular parts are packed flat in cartons, making sea-freight loading more space-efficient; assembly happens on site.
03SPECIFICATION OPTIONS
Available options, confirmed per project
| Example size | 1200 x 700 x 850 mm (L x D x H); other sizes from the 1200 / 1500 / 1800 / 2000 x 600 / 700 / 800 mm range |
|---|---|
| Material | 201 or 304 stainless steel options, subject to specification confirmation |
| Tabletop thickness | 1.2 / 1.5 / 2.0 mm options |
| Frame | 25 x 25 x 1.2 mm square-tube option |
| Storage layout | 3 drawers with metal slides; enclosed sliding-door cabinet; two-side enclosed panels |
| Finish | Brushed or mirror options; welded seams ground and polished; rounded corners |
| Packaging | Flat-pack carton packaging designed for container loading |
| Customization | Dimensions, material grade, leg height, logo and packaging confirmed per project |
All values are options for discussion. Final specifications are confirmed per project before quotation.
04INTENDED USE
Application examples
Listed as intended use — suitability for a specific project is confirmed together.
-
Restaurant back-of-house
Prep and storage stations for busy kitchen lines.
-
Canteens and cafeterias
Multi-use prep and utensil storage for staff and school dining.
-
Food preparation areas
Dedicated surfaces for cutting and staging in food processing spaces.
-
Hotel kitchens
Orderly storage near service and cooking zones.
