Removable baffle filters
Corrugated baffle filters can be removed from the intake bank for cleaning.
PRODUCT STATUS
This product is currently unavailable.
Please return to the product range or contact Yiming about another configuration.
Back to productsVentilation
Commercial Stainless Steel Exhaust Hood
Hood reference with removable baffle-filter configuration.
Reference configuration: stainless steel exhaust hood with baffle filter bank, front view

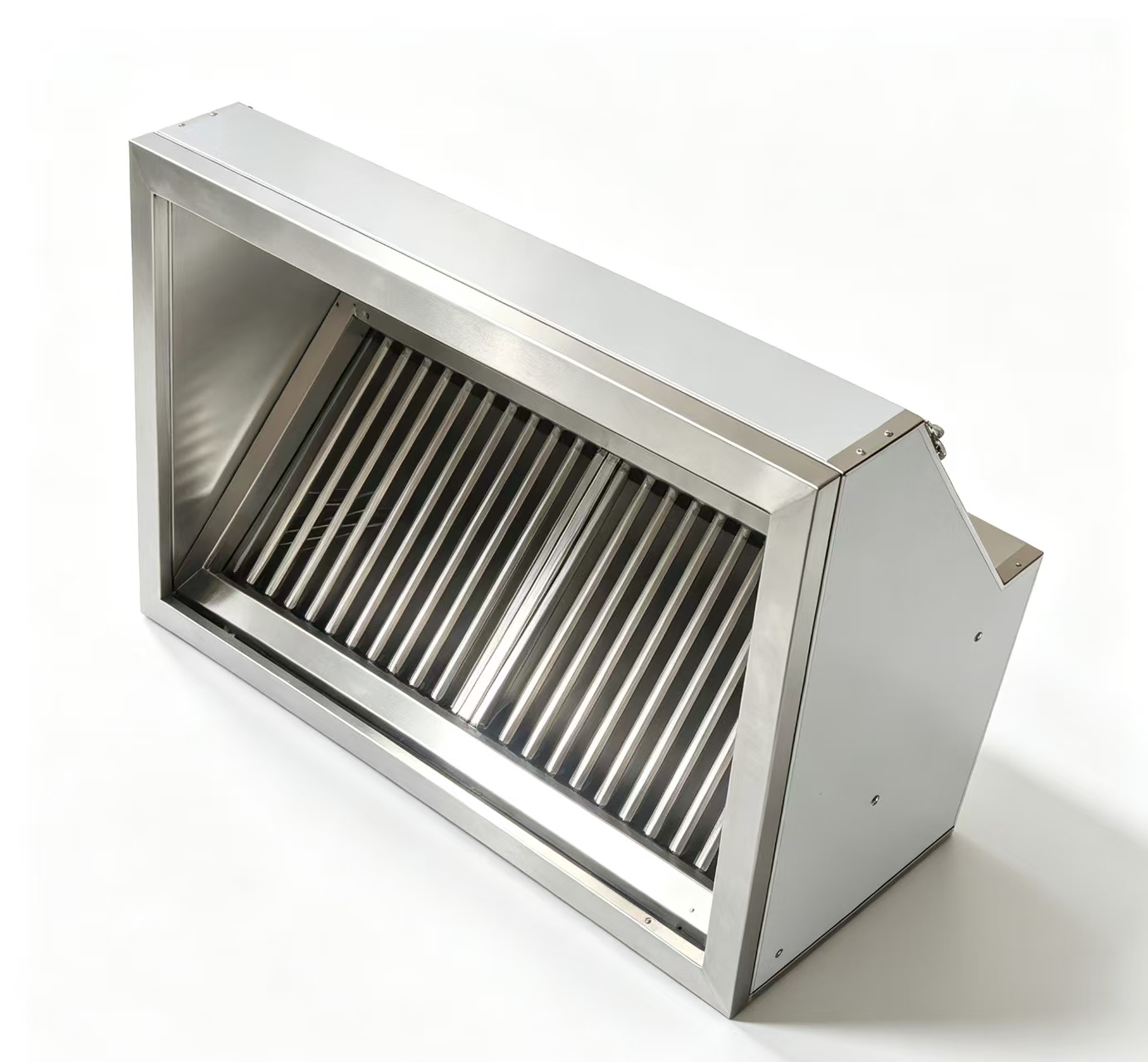

Reference configuration: exhaust hood viewed from above at an angle

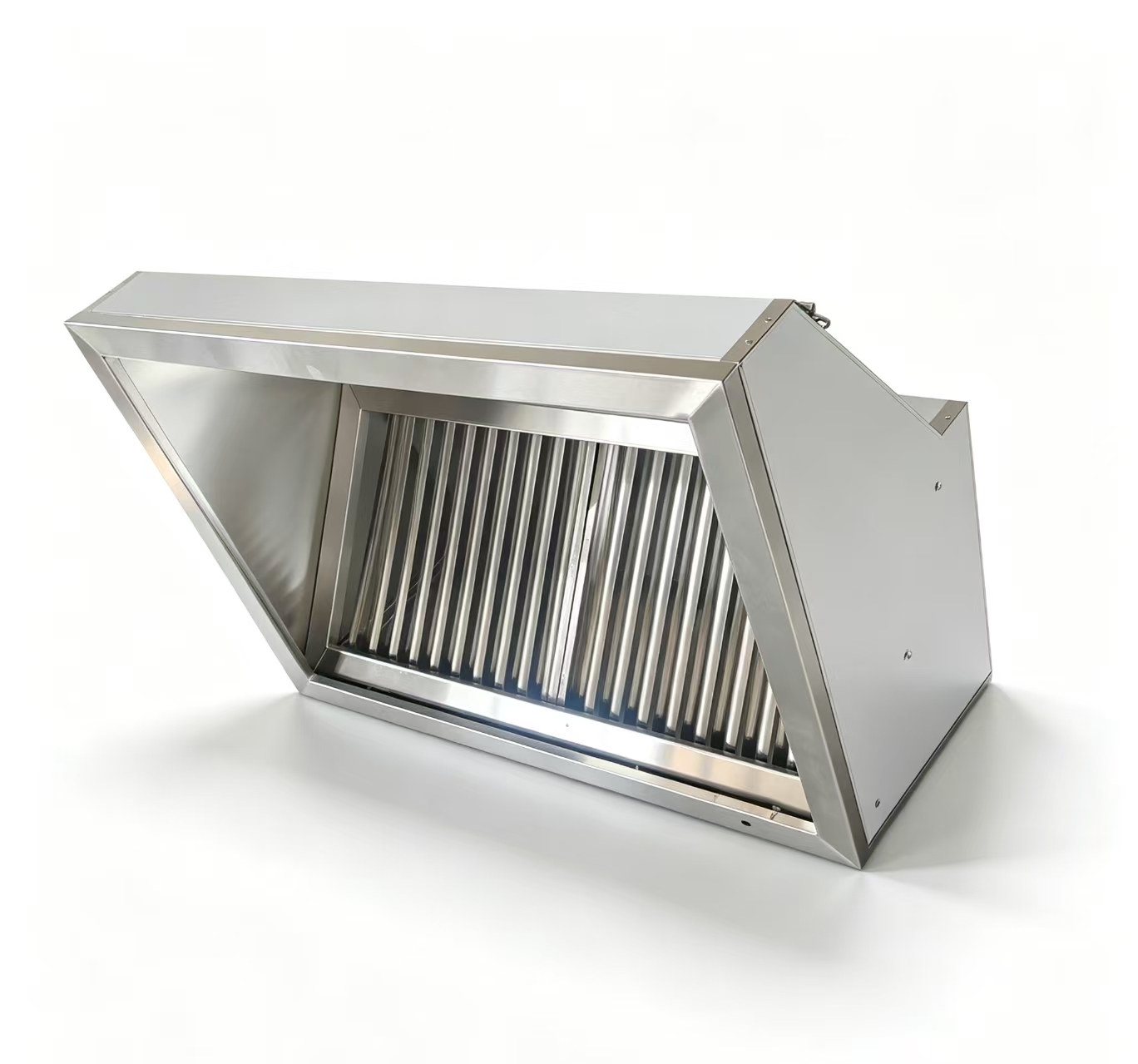

Reference configuration: exhaust hood with filter bank and collection channel

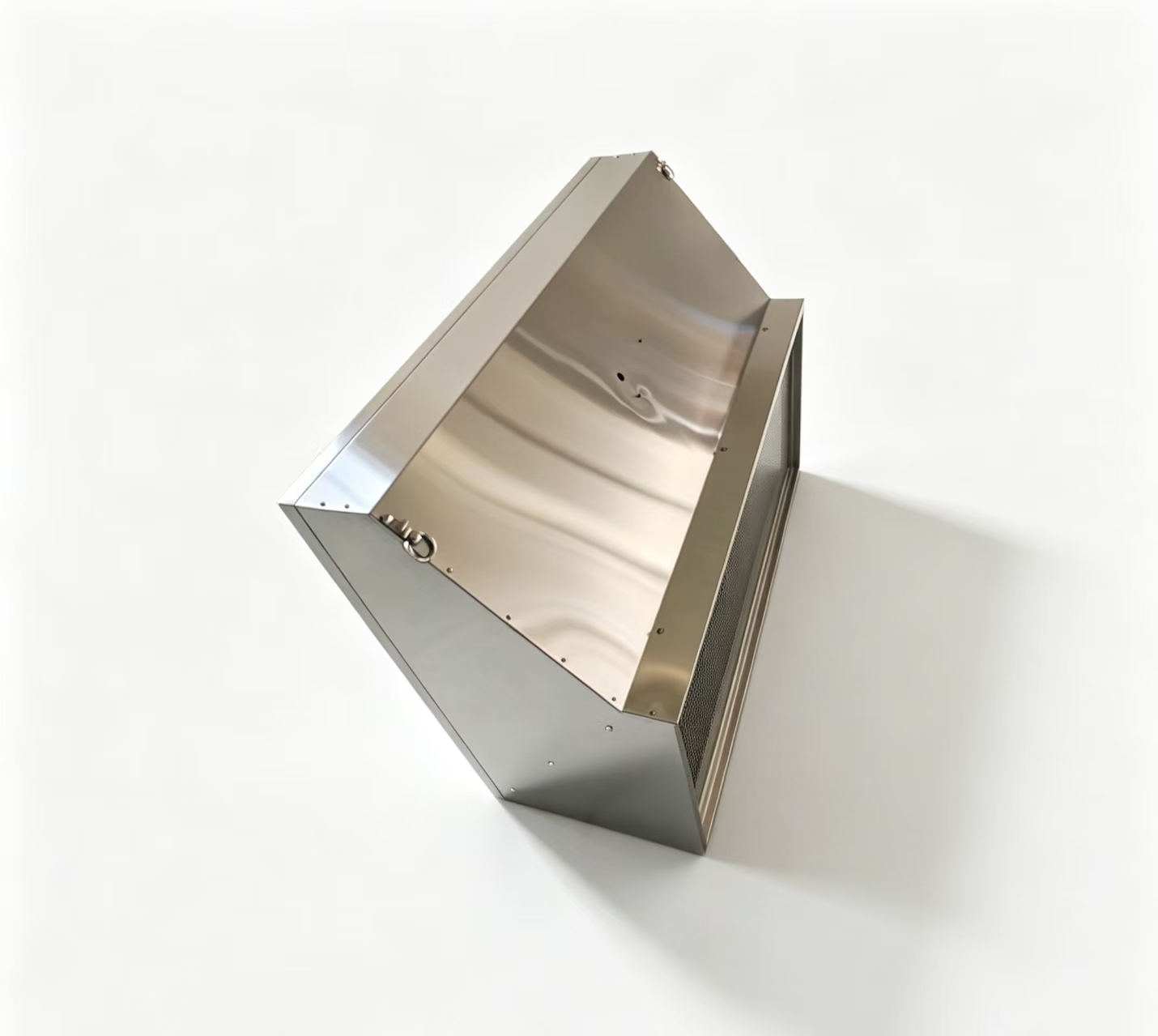

Reference configuration: exhaust hood body detail with perforated mesh panel

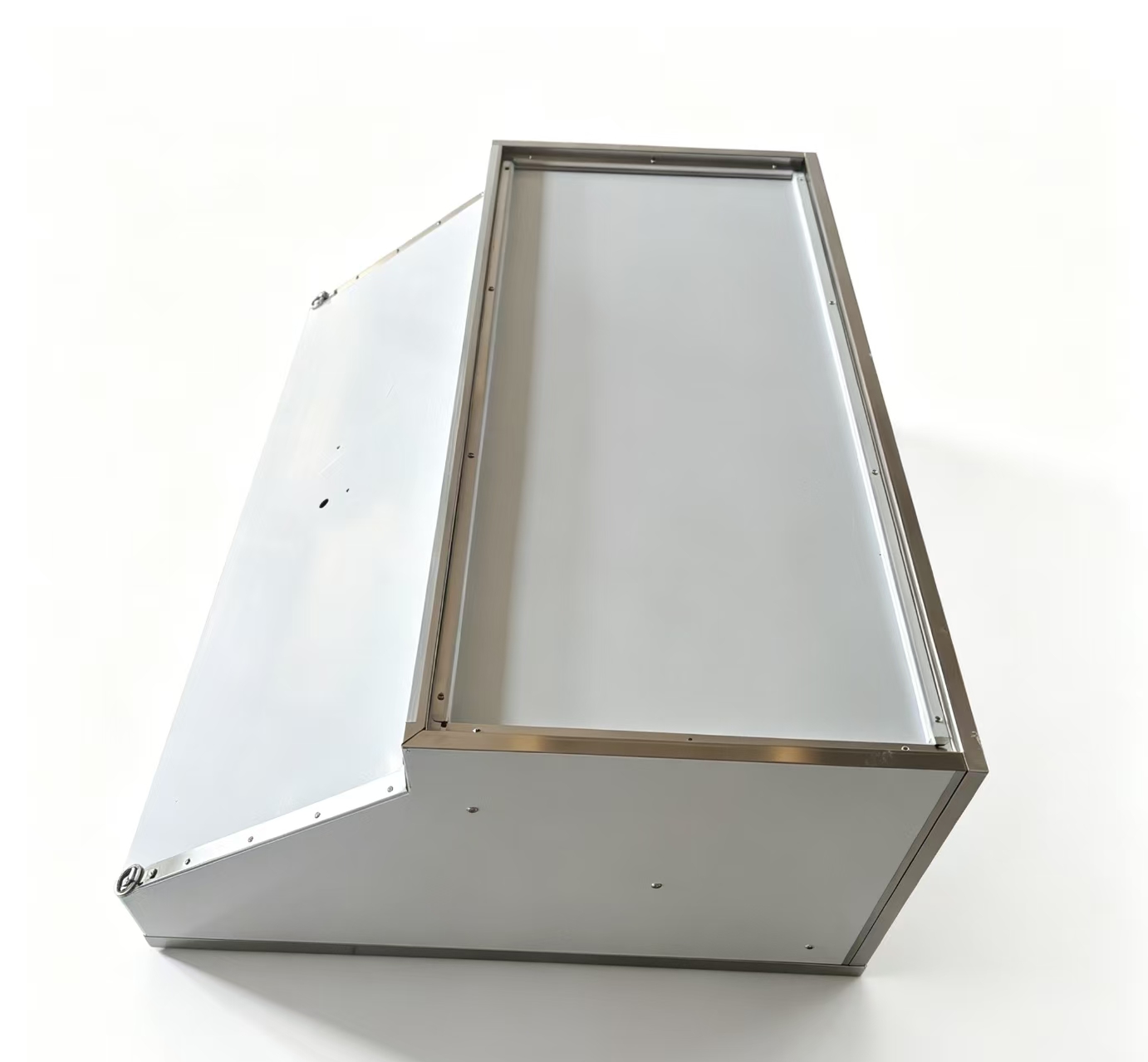

Reference configuration: exhaust hood enclosure with access door

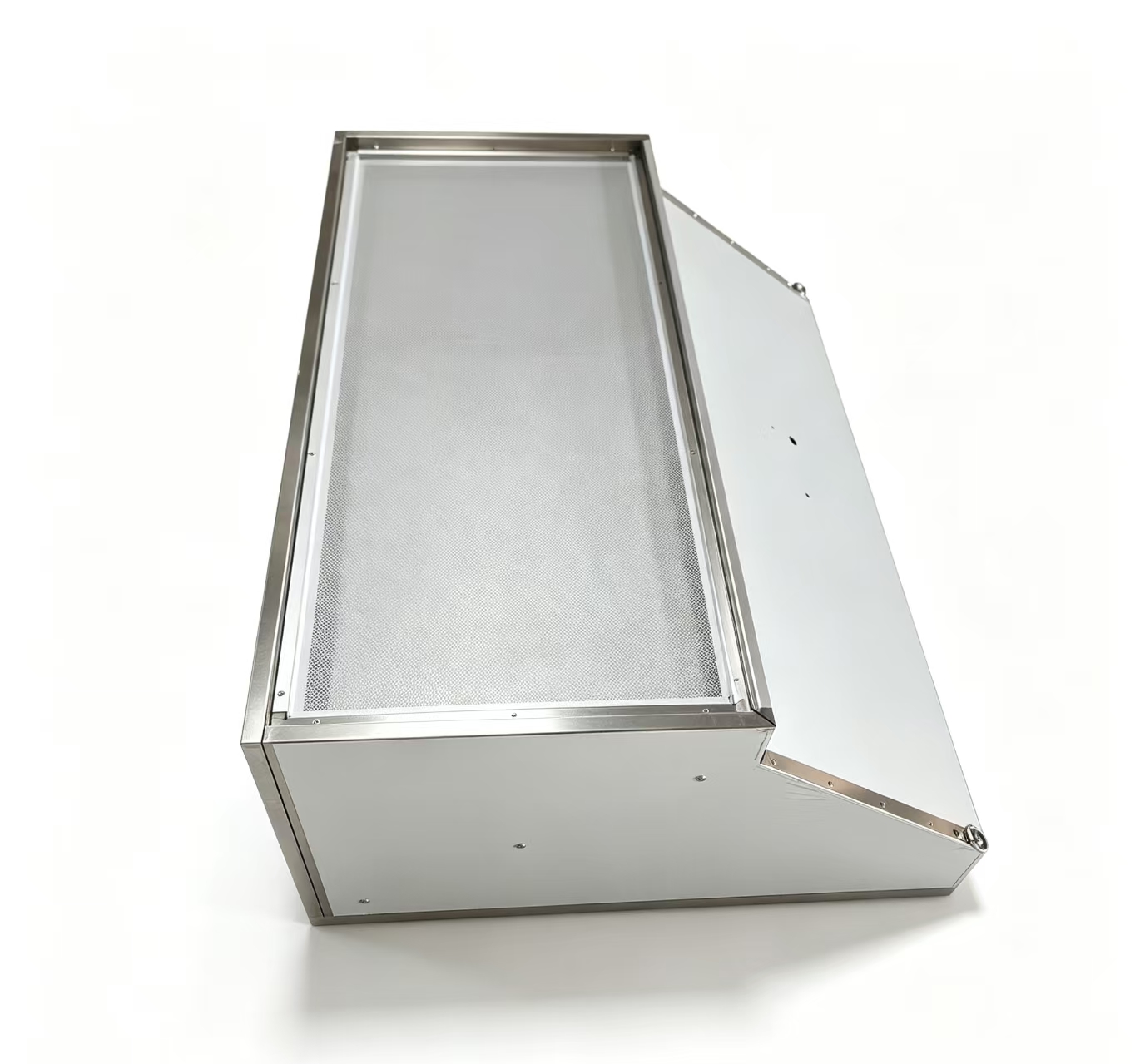

Reference configuration: exhaust hood with perforated intake panel and side door

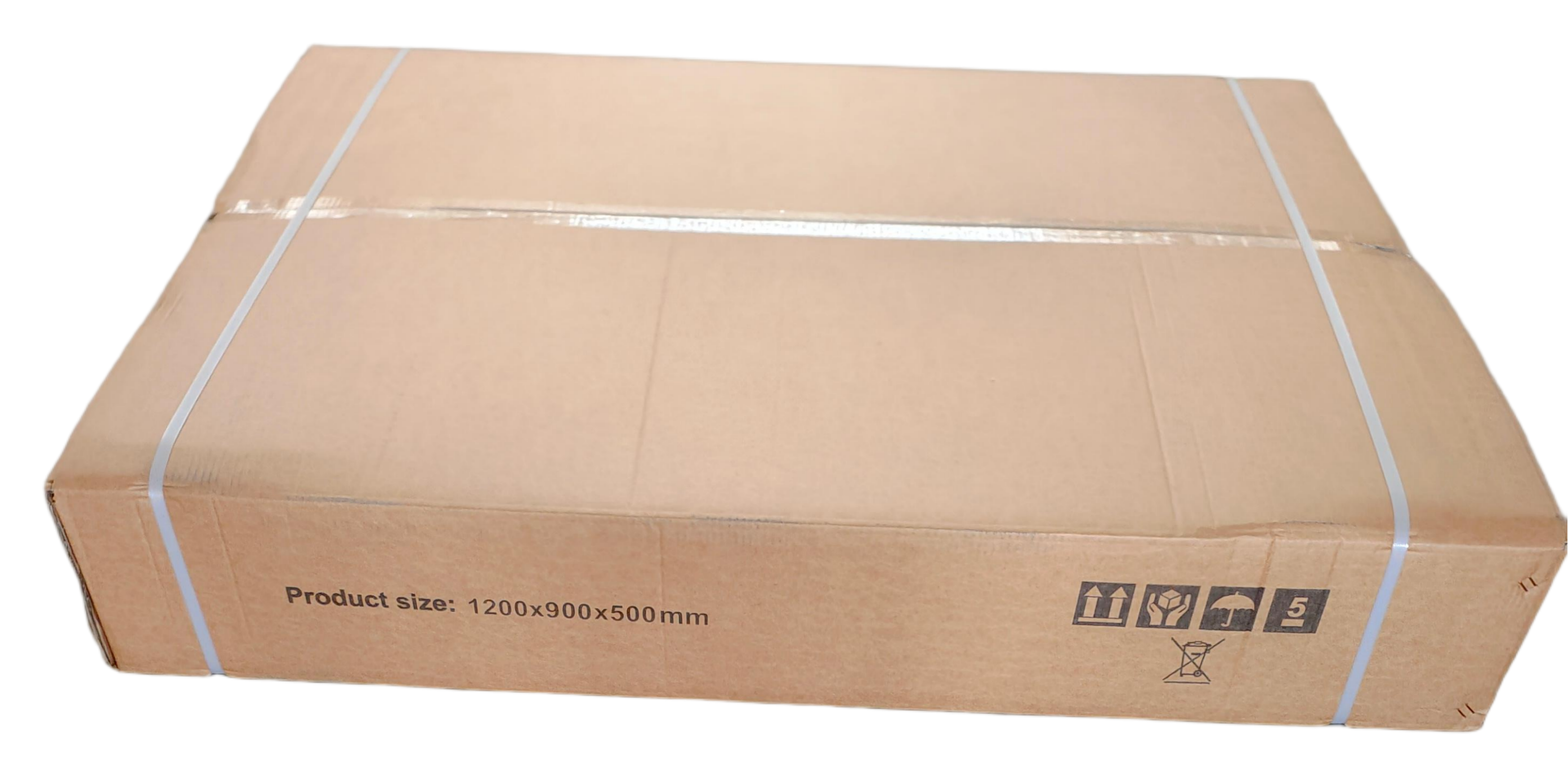

Reference configuration: export carton for the exhaust hood with handling marks
1 / 7
A stainless steel exhaust hood reference with a one-piece folded body and removable corrugated baffle filters. The filter bank can be removed for cleaning, and the hood can be built to non-standard lengths for the kitchen layout.
Airflow, fan and ducting, lighting configuration and any fire or compliance requirements are confirmed per project. The unit can be supplied as flat-pack parts for space-efficient export shipping.
SPECIFICATION GATE
Confirmation required before quotation
This product depends on project-specific technical and market requirements. The items below are confirmed with you before any quotation.
- Kitchen dimensions and hood length
- Airflow, fan and ducting requirements
- Lighting configuration and power supply
- Fire and compliance requirements for the destination market
02DESIGN & STRUCTURE
What this configuration includes
One-piece folded body
The hood body is formed from folded stainless sheet with polished welded seams and rounded corners.
Integrated lighting
Lighting is built into the hood; the lighting type and configuration are confirmed per project.
Non-standard lengths
The hood can be made to custom lengths for the actual kitchen layout.
Flat-pack export option
Flat-pack configurations help use container space efficiently.
Project-level confirmation
Airflow, fan, ducting, lighting and compliance requirements are confirmed per project before quotation.
03SPECIFICATION OPTIONS
Available options, confirmed per project
| Size range | 1000 / 1200 / 1600 / 1800 / 2000 x 900 / 1000 mm options; non-standard lengths available |
|---|---|
| Material | 201 or 304 stainless steel options, subject to specification confirmation |
| Shell thickness | 0.8 / 1.0 / 1.2 mm options |
| Filter bank | Removable corrugated baffle filters |
| Lighting | Integrated lighting; configuration confirmed per project |
| Finish | Brushed stainless; polished welds; rounded corners |
| Packaging | Export cartons; flat-pack configurations available |
| Confirmation required | Airflow, fan, ducting, lighting and fire/compliance requirements confirmed per project |
All values are options for discussion. Final specifications are confirmed per project before quotation.
04INTENDED USE
Application examples
Listed as intended use — suitability for a specific project is confirmed together.
-
Restaurant kitchens
Over-range extraction for cooking lines.
-
Canteens
Ventilation over batch cooking stations.
-
Food processing areas
Extraction over preparation and cooking equipment.
-
Hotel kitchens
Hoods sized to the kitchen layout.
